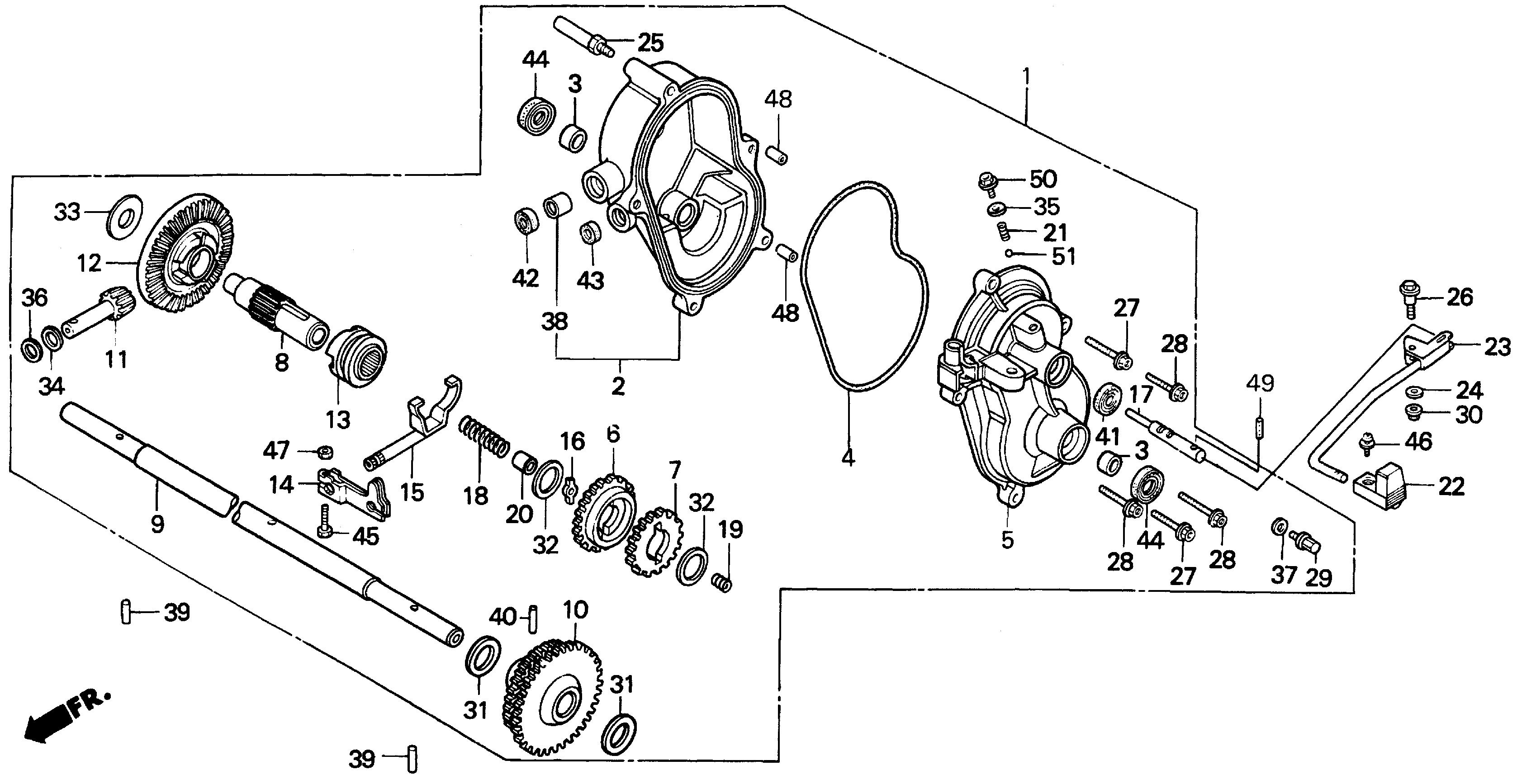

Description BUSH, TRANSMISSION CASE (NOT AVAILABLE)
Serial Range 1000001 - 9999999
Ref No 4
Part Number 21592-VA4-801
Description O-RING, TRANSMISSION CASE
Serial Range 1000001 - 9999999
Qty
Price $7.16
Ref No 5
Part Number 21611-VB5-800
Description CASE, L. TRANSMISSION (NOT AVAILABLE)
Serial Range 1000001 - 9999999
Qty
Price $89.94
Ref No 6
Part Number 23111-VB5-800
Description GEAR, HIGH DRIVE (28T) (SOURCE: VINTAGE PARTS INC.)
Serial Range 1000001 - 9999999
Qty
Price $29.98
Ref No 7
Part Number 23211-VB5-800
Description GEAR, LOW DRIVE
Serial Range 1000001 - 9999999
Qty
Price $17.30
Ref No 8
Part Number 23221-VB5-800
Description COUNTERSHAFT
Serial Range 1000001 - 9999999
Qty
Price $47.78
Ref No 9
Part Number 23251-VB5-802
Description SHAFT, FINAL
Serial Range 1000001 - 9999999
Qty
Price $105.18
Ref No 10
Part Number 23350-VB5-800
Description GEAR, FINAL (NOT AVAILABLE)
Serial Range 1000001 - 9999999
Ref No 11
Part Number 23411-VB3-801
Description PINION, BEVEL
Serial Range 1000001 - 9999999
Qty
Price $43.86
Ref No 12
Part Number 23421-VB3-800
Description GEAR, BEVEL (44T) (SOURCE: VINTAGE PARTS INC.)
Serial Range 1000001 - 3012246
Qty
Price $93.80
Ref No 12
Part Number 23421-VB5-800
Description GEAR, BEVEL (44T) (NOT AVAILABLE)
Serial Range 3012247 - 9999999
Ref No 13
Part Number 23431-VB3-800
Description CLUTCH, DRIVEN
Serial Range 1000001 - 3012246
Qty
Price $27.92
Ref No 13
Part Number 23431-VB5-800
Description CLUTCH, DRIVEN (NOT AVAILABLE)
Serial Range 3012247 - 9999999
Ref No 14
Part Number 23436-VA4-J02
Description ARM, CLUTCH
Serial Range 5001263 - 9999999
Qty
Price $57.44
Ref No 14
Part Number 23436-VA4-801
Description ARM, CLUTCH
Serial Range 1000001 - 9999999
Ref No 15
Part Number 23440-VB3-800
Description SHAFT, SHIFT
Serial Range 1000001 - 9999999
Qty
Price $26.06
Ref No 16
Part Number 24102-VB3-800
Description SHIFTER
Serial Range 1000001 - 9999999
Qty
Price $5.12
Ref No 17
Part Number 24122-VB5-800
Description SLIDER, SHIFT (NOT AVAILABLE)
Serial Range 1000001 - 9999999
Ref No 18
Part Number 24123-VA4-800
Description SPRING, SHIFT
Serial Range 1000001 - 9999999
Qty
Price $3.68
Ref No 19
Part Number 24124-VA4-800
Description SPRING, HIGH GEARSHIFT
Serial Range 1000001 - 9999999
Qty
Price $2.46
Ref No 20
Part Number 24251-VA4-800
Description RETAINER, SHIFT SPRING
Serial Range 1000001 - 9999999
Qty
Price $4.02
Ref No 21
Part Number 24271-VB3-800
Description SPRING, BALL SETTING (NOT AVAILABLE)
Serial Range 1000001 - 9999999
Ref No 22
Part Number 54225-VA4-800
Description KNOB, CHANGE LEVER (NOT AVAILABLE)
Serial Range 1000001 - 9999999
Ref No 23
Part Number 54311-VB5-800
Description LEVER, CHANGE
Serial Range 1000001 - 3012058
Qty
Price $17.46
Ref No 23
Part Number 54311-VB5-801
Description LEVER, CHANGE
Serial Range 3012059 - 9999999
Qty
Price $17.46
Ref No 24
Part Number 56468-PC1-010
Description PLATE, ADJUSTING
Serial Range 1000001 - 9999999
Qty
Price $3.28
Ref No 25
Part Number 90012-VA4-800
Description BOLT, GUIDE
Serial Range 1000001 - 9999999
Qty
Price $4.14
Ref No 26
Part Number 90015-730-000
Description BOLT, TANK SETTING
Serial Range 1000001 - 9999999
Qty
Price $6.30
Ref No 27
Part Number 90123-VA4-800
Description BOLT, FLANGE (6X28)
Serial Range 1000001 - 9999999
Qty
Price $2.68
Ref No 28
Part Number 90125-VA4-800
Description BOLT, FLANGE (6X25)
Serial Range 1000001 - 9999999
Qty
Price $3.32
Ref No 29
Part Number 90131-ZE1-000
Description BOLT, DRAIN PLUG
Serial Range 1000001 - 9999999
Qty
Price $3.04
Ref No 30
Part Number 90220-MA5-700
Description NUT, NYLON RING (6MM)
Serial Range 1000001 - 9999999
Qty
Price $11.46
Ref No 31
Part Number 90446-357-000
Description WASHER, THRUST (17.2MM)
Serial Range 1000001 - 9999999
Qty
Price $4.98
Ref No 32
Part Number 90451-436-000
Description WASHER, THRUST (19.5MM)
Serial Range 1000001 - 9999999
Qty
Price $3.72
Ref No 33
Part Number 90452-VB5-800
Description WASHER, THRUST (12MM)
Serial Range 1000001 - 9999999
Qty
Price $6.66
Ref No 34
Part Number 90452-187-000
Description WASHER (10X21)
Serial Range 1000001 - 9999999
Qty
Price $3.00
Ref No 35
Part Number 90463-KRM-840
Description WASHER, SEALING (6.2X12X1.2)
Serial Range 1000001 - 9999999
Qty
Price $1.72
Ref No 36
Part Number 90481-VB5-800
Description SHIM, BEVEL PINION (A)
Serial Range 1000001 - 9999999
Qty
Price $2.60
Ref No 36
Part Number 90482-VB5-800
Description SHIM, BEVEL PINION (B)
Serial Range 1000001 - 9999999
Qty
Price $2.60
Ref No 36
Part Number 90483-VB5-800
Description SHIM, BEVEL PINION (C)
Serial Range 1000001 - 9999999
Qty
Price $2.60
Ref No 37
Part Number 90601-ZE1-000
Description WASHER, DRAIN PLUG (10.2MM)
Serial Range 1000001 - 9999999
Ref No 38
Part Number 91012-VB5-801
Description BEARING, NEEDLE (10X17X20)
Serial Range 1000001 - 9999999
Qty
Price $17.34
Ref No 39
Part Number 91101-VA4-801
Description ROLLER (5X23.8)
Serial Range 1000001 - 9999999
Ref No 40
Part Number 91151-VB5-800
Description ROLLER (6X25)
Serial Range 1000001 - 9999999
Qty
Price $1.94
Ref No 41
Part Number 91201-VA4-801
Description OIL SEAL (10X20X5)
Serial Range 1000001 - 9999999
Qty
Price $5.28
Ref No 42
Part Number 91206-VA3-J02
Description OIL SEAL (10X17X4)
Serial Range 1000001 - 9999999
Qty
Price $2.56
Ref No 43
Part Number 91201-ZE9-003
Description OIL SEAL (8X14X5)
Serial Range 1042922 - 9999999
Qty
Price $5.26
Ref No 44
Part Number 91205-VB5-801
Description OIL SEAL (17X26X6)
Serial Range 1000001 - 9999999
Qty
Price $6.14
Ref No 45
Part Number 92101-05020-0A
Description BOLT, HEX. (5X20)
Serial Range 1000001 - 9999999
Qty
Price $1.46
Ref No 46
Part Number 93891-04012-07
Description SCREW-WASHER (4X12)
Serial Range 1000001 - 9999999
Qty
Price $1.44
Ref No 47
Part Number 94001-05000-0S
Description NUT, HEX. (5MM)
Serial Range 1000001 - 9999999
Qty
Price $3.34
Ref No 48
Part Number 94301-08140
Description PIN, DOWEL (8X14)
Serial Range 1000001 - 9999999
Qty
Price $2.82
Ref No 49
Part Number 94305-40202
Description PIN, SPRING (4X20)
Serial Range 1000001 - 9999999
Qty
Price $2.84
Ref No 50
Part Number 95701-06010-00
Description BOLT, FLANGE (6X10)
Serial Range 1000001 - 9999999
Qty
Price $1.58
Ref No 51
Part Number 96211-06000
Description BALL, STEEL (#6) (3/16)
Serial Range 1000001 - 9999999
Qty
Price $0.64
